WinForms Automation the Right Way in 2026 — Lapu AI

Lapu AI TeamJuly 3, 202611 min read

TL;DR

You automate a WinForms application by targeting its controls through the Windows UI Automation (UIA) tree, not by scripting COM interop or clicking pixels. Because WinForms is a first-class Windows UI framework, most standard controls — Button, TextBox, ComboBox, CheckBox, ListView, TreeView — are exposed to UIA automatically through client-side providers, so code using System.Windows.Automation or the FlaUI library can find them by control type and name and read or set their values reliably. Two honest gaps exist: DataGridView and a handful of complex controls are surfaced only through the older Microsoft Active Accessibility layer, so some functionality is missing, and owner-drawn or custom-painted controls may not appear in the tree at all. The 2004-era approaches the top search results still describe — COM interop against an exported object model, SendKeys keystroke injection, and pixel-coordinate clicking — are fragile because they break on focus loss, window resize, screen resolution, and timing. The 2026 alternative is an AI computer-use agent: instead of writing and maintaining UIA selectors that shift with every release, the agent reads the accessibility tree at run time, adapts to what it finds, and falls back to on-screen OCR when a control is invisible to the tree. Use UIA-based code (FlaUI) when you own a stable regression suite; use an AI agent when the app changes often, has no selectors worth maintaining, or belongs to a non-developer who just needs the task done.

Want WinForms automation that does not inherit fragile code? Most guides on how to automate a WinForms application still date from 2004 and tell you to script COM interop against an exported object model, inject keystrokes with SendKeys, or click fixed screen coordinates. All three are fragile. The modern answer is the Windows UI Automation tree: WinForms controls are exposed to it natively, so code — or an AI agent — can target a button or text box by identity instead of position. This guide covers both the code path (FlaUI) and the AI computer-use path, and it is honest about where each one breaks.

What automating a WinForms application means in 2026

WinForms — Windows Forms — is the classic .NET desktop UI framework. Millions of line-of-business apps still run on it: an inventory tool from 2011, a claims-processing front end, an internal CRM nobody has budget to rewrite. Automating one means driving its buttons, fields, grids, and menus without a human at the keyboard.

There are two families of technique, and the whole post turns on the difference:

Code against the accessibility tree. You write a program (usually C#) that queries the operating system for the app's controls and manipulates them by identity. This is the deterministic, engineered path.
An AI agent that reads the same tree at run time. Instead of hard-coding which control to click, the agent reads the accessibility tree, decides what to do next from the task you described, and adapts when the UI changes.

Both rest on the same foundation: Microsoft UI Automation (UIA), the framework Windows exposes so assistive technologies like screen readers can perceive and operate any application. WinForms plugs into it by default. That single fact is what makes 2026-era automation reliable and the 2004 advice obsolete.

Why the old COM interop and SendKeys advice is fragile

The stale approaches share one flaw: they target the app by something other than the control's identity.

COM interop assumes the application exports a scriptable object model you can bind to. Most internal WinForms apps never exported one, and the ones that did tie you to a specific version — the interface shifts and your script stops compiling. It is also the narrowest path: it works only for the small set of apps whose authors chose to expose it.

SendKeys injects keystrokes into whatever window currently holds foreground focus. That makes it fundamentally racy. Keystroke injection depends on foreground focus, session state, keyboard layout, timing, and the target's current UI state — lose focus to a notification toast mid-sequence and the keys land in the wrong window. There is no confirmation the input reached the control you meant.

Pixel-coordinate clicking assumes a control stays at a fixed (x, y) on screen. It breaks on window resize, a different screen resolution, DPI scaling, a maximized versus restored window, or a toolbar someone dragged. And it is blind: it cannot verify the pixel it clicked was the Save button rather than empty canvas.

UI Automation removes the shared flaw. It targets a control by what it is — a Button named "Save", a TextBox with automation id txtInvoice — not by where it sits or which window has focus. Layout changes that shatter a coordinate script leave a UIA-based one untouched.

How WinForms controls appear in the UI Automation tree

The reason UIA works so well on WinForms is that Microsoft did the integration for you. Windows Forms controls are exposed to UI Automation through client-side providers in UIAutomationClientsideProviders.dll, an assembly that "is automatically registered for use with UI Automation client applications" (Microsoft Learn). You do not modify the target app. You do not recompile it. The tree is already there.

Every element in a running desktop sits in one tree whose root is the desktop itself, and the raw view "closely follows the native programmatic structure of an application" (Microsoft Learn). Walk down from the desktop to your app's window, and you reach its controls as AutomationElement objects carrying a control type, a name, and the patterns they support (invoke a button, set a value, toggle a checkbox).

The standard WinForms controls that Microsoft documents as fully supported cover most real forms:

Button, CheckBox, RadioButton, GroupBox
TextBox, RichTextBox, Label, MaskedTextBox
ComboBox, ListBox, CheckedListBox
ListView, TreeView, TabControl / TabPage
ProgressBar, TrackBar, MonthCalendar, StatusBar

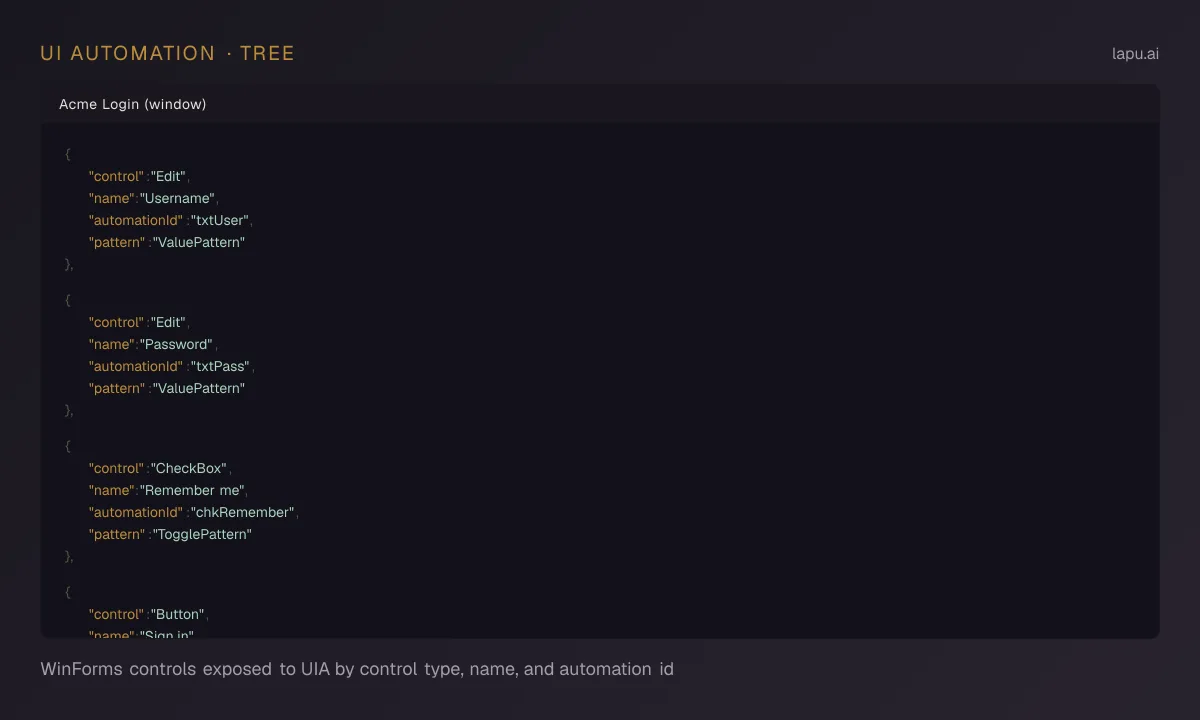

Here is the shape of what UIA sees for a simple login form, which is the substance a diagram only reinforces:

Window "Acme Login"                       (ControlType.Window)
├─ Edit "Username"        AutomationId=txtUser   (ControlType.Edit,   ValuePattern)
├─ Edit "Password"        AutomationId=txtPass   (ControlType.Edit,   ValuePattern)
├─ CheckBox "Remember me" AutomationId=chkRemember (ControlType.CheckBox, TogglePattern)
└─ Button "Sign in"       AutomationId=btnLogin  (ControlType.Button, InvokePattern)

UI Automation tree for a WinForms login form showing controls by type and automation id

An automation client finds btnLogin by its name and control type, calls the Invoke pattern, and the button clicks — regardless of where the window sits or whether it has focus.

Automate a WinForms application with code (FlaUI)

For a deterministic, maintainable suite, the standard 2026 tool is FlaUI, an open-source ".NET library which helps with automated UI testing of Windows applications (Win32, WinForms, WPF, Store Apps, ...)." It is "based on native UI Automation libraries from Microsoft" — a friendly wrapper over the same System.Windows.Automation foundation, so you write less boilerplate than calling UIA directly. Prefer the FlaUI.UIA3 package for modern apps; FlaUI.UIA2 exists for older targets.

A minimal example — launch the app, find controls by automation id, drive them:

using FlaUI.Core;
using FlaUI.UIA3;
using FlaUI.Core.AutomationElements;

using var app = Application.Launch(@"C:\Acme\Acme.exe");
using var automation = new UIA3Automation();
var window = app.GetMainWindow(automation);

// Find controls by identity, not position
window.FindFirstDescendant(cf => cf.ByAutomationId("txtUser"))
      .AsTextBox().Text = "mwozniak";
window.FindFirstDescendant(cf => cf.ByAutomationId("txtPass"))
      .AsTextBox().Text = secret;
window.FindFirstDescendant(cf => cf.ByAutomationId("btnLogin"))
      .AsButton().Invoke();

This survives a resized window, a moved button, and a lost focus — because every lookup is by identity. FlaUI even ships dedicated helpers for the WinForms DataGridView (a DataGridView element type with row, header, and cell accessors), which matters because, as the next section explains, the grid is a known soft spot.

The cost of the code path is maintenance. Every automation id you hard-code is a selector you must update when the app changes. For a stable app with a real regression suite, that trade is worth it. For an app that changes every sprint, or one operated by someone who does not write C#, it is a treadmill.

The AI agent approach: read the tree, adapt at run time

The alternative inverts the maintenance problem. Rather than writing selectors ahead of time, a desktop AI agent reads the UI Automation tree while it runs and decides what to do from the task you described in plain English.

Anthropic shipped the first commercially viable version of this pattern in October 2024, when it gave Claude the ability to "perceive and interact with computer interfaces" through screenshots and mouse-and-keyboard control (Anthropic). The loop on a WinForms app looks like this:

You describe the task. "Open Acme, export every invoice from last month to CSV, and save it to ~/exports."
The agent reads the tree. It queries UIA for the window's controls — the same AutomationElement structure FlaUI walks — so it knows the Export button and the date fields exist before it touches anything.
The agent acts by identity. It invokes the Export button and sets the date fields through their value patterns, not by clicking coordinates.
The agent verifies and adapts. If a control moved or was renamed between releases, the agent finds it again by role and label instead of failing on a stale selector.
The agent records the trail. Each action — control invoked, value set, file written — lands in a local audit trail you can inspect afterward.

The advantage over hard-coded selectors is adaptation. When a developer renames btnExport to btnExportCsv, a FlaUI script throws until someone updates it; an agent re-reads the tree, sees one button whose label is "Export", and proceeds. This is why the agent pattern suits legacy Windows apps with no API that change unpredictably and have no test suite to maintain.

Honest limits: DataGridView, owner-drawn controls, thin trees

UI Automation is not a magic key to every WinForms app. Three real gaps matter, and pretending they do not exist would waste your time.

DataGridView and complex controls surface only through the older layer. Microsoft's own table lists DataGridView, DataGrid, Form, Panel, PropertyGrid, ToolStrip, MenuStrip, and UserControl among controls "exposed to Microsoft UI Automation only through their support for Microsoft Active Accessibility," and warns that "some functionality may not be available" (Microsoft Learn). In practice, reading a specific DataGridView cell can be flaky, which is exactly why FlaUI wrote a dedicated DataGridView helper to paper over the rough edges. Expect grid work to need more care than button-and-textbox work.

Owner-drawn and custom-painted controls may not appear at all. A control that paints itself in OnPaint without exposing an automation peer — a third-party charting widget, a hand-rolled grid, a custom toggle — can be effectively invisible to UIA, showing up as a blank pane or a single opaque element. Code-based tools hit a wall here: there is no element to target.

Thin trees force an OCR fallback. When the tree is missing the control you need, the only remaining signal is the pixels on screen. This is where the AI agent degrades more gracefully than a code library. FlaUI has nothing to grab, but an agent can fall back to reading the rendered screen with OCR, locate the value or button visually, and click the computed position — a thin tree slows it down rather than stopping it. The honest framing: prefer the tree, fall back to vision, never rely on coordinates alone.

Which approach to use when

There is no single winner. The decision is about who operates the automation and how often the app changes.

Factor	FlaUI / code	AI computer-use agent
Best operator	Developer with a test suite	Anyone; describes the task in English
App changes often	Selectors need updating each time	Re-reads the tree, adapts
Owner-drawn / thin tree	Hits a wall (no element)	Falls back to OCR on the screen
DataGridView cells	Dedicated helper, still fiddly	Reads tree, OCR fallback for gaps
Determinism	High — same steps every run	Judgment per run; permission-gated
Maintenance cost	Ongoing selector upkeep	None to maintain

Use FlaUI when you are a developer building a regression suite against a stable app and you want byte-for-byte repeatable runs. Use an AI agent when the app changes often, has no selectors worth maintaining, is operated by someone who does not write C#, or is a legacy tool with no API. For teams weighing a full RPA platform instead, the Power Automate Desktop comparison and the buyer's guide to desktop automation tools lay out the trade-offs against both.

The mistake is forcing one tool onto every job. A brittle SendKeys macro and an over-engineered FlaUI suite fail in opposite directions. Target the UI Automation tree, add an agent for the parts that shift, and keep OCR in reserve for the controls Windows never exposed. That is how you automate a WinForms application in 2026 without inheriting 2004's fragility.

FAQ

How do I automate a WinForms application?: Target the application's controls through the Windows UI Automation (UIA) tree rather than scripting COM interop or clicking pixel coordinates. WinForms is a first-class Windows UI framework, so standard controls — Button, TextBox, ComboBox, ListView, TreeView — are exposed to UIA automatically through client-side providers. Code using System.Windows.Automation or the FlaUI library finds each control by its control type and name, then reads its value or invokes it. An AI computer-use agent does the same by reading the accessibility tree at run time and adapting, instead of maintaining hard-coded selectors.
Can UI Automation see WinForms controls without changing the app?: Yes for most standard controls. Microsoft's documentation states that Windows Forms controls are exposed to UI Automation through client-side providers in UIAutomationClientsideProviders.dll, which is registered automatically. Button, CheckBox, ComboBox, Label, ListBox, ListView, RadioButton, TextBox, TreeView and similar wrappers of Win32 common controls all appear in the tree with no source-code change. The exceptions are DataGridView, Form, Panel, and a set of complex controls that surface only through Microsoft Active Accessibility, where some functionality may be missing, and custom owner-drawn controls that may not appear at all.
Is FlaUI or an AI agent better for automating a .NET desktop application?: They solve different problems. FlaUI is a .NET library built on the native Microsoft UI Automation APIs; it is precise, fast, and free, and it is the right choice when you own a stable regression suite and can maintain selectors as the app evolves. An AI computer-use agent reads the accessibility tree at run time and decides the next step, so it adapts when the UI shifts and needs no selector maintenance. Use FlaUI for deterministic engineered tests; use an agent when the app changes often, has no selectors worth maintaining, or the operator is not a developer.
Why is SendKeys and pixel-clicking unreliable for desktop automation?: SendKeys injects keystrokes into whichever window has foreground focus, so it breaks the moment focus moves, a dialog steals the input, the desktop session changes, or the keyboard layout differs. Pixel-coordinate clicking assumes a control stays at a fixed screen position, so it breaks on window resize, a different screen resolution, DPI scaling, or a moved toolbar. Both approaches also have no way to confirm the click landed on the intended control. UI Automation targets a control by identity, not position, so it survives layout changes that break coordinate-based scripts.
Can an AI agent automate a legacy .NET application with no API?: Yes — that is the case the desktop-agent pattern is built for. A legacy WinForms or .NET desktop application usually has no public API, no webhook, and no command-line interface, so an integration platform cannot reach it. An AI computer-use agent operates the app the way a person does: it reads the UI Automation tree to find controls, clicks and types through them, and falls back to reading the screen with OCR when a control is invisible to the tree. No source code, DLL export, or vendor cooperation is required.
What happens when a WinForms control is not in the accessibility tree?: Owner-drawn and custom-painted controls — a third-party grid, a hand-rolled chart, a control that paints itself in OnPaint without exposing an automation peer — can be invisible to UI Automation, appearing as a blank pane or a single opaque element. Code-based tools like FlaUI hit a wall here because there is no element to target. An AI agent degrades more gracefully: it falls back to reading the rendered pixels with OCR, locating the value or button visually, and clicking the screen position it computed, so a thin automation tree slows the agent down rather than stopping it.
Do I need admin rights or to modify the WinForms app to automate it?: You do not need to modify the target application, because UI Automation reads the tree the operating system already maintains for assistive technologies such as screen readers. You may need matching privilege levels: a UI Automation client generally cannot drive an application running at a higher integrity level than itself, so automating an app launched as administrator means running your automation as administrator too. Beyond that, standard WinForms controls are automatable out of the box with no code change to the app under test.
What does Lapu AI do that a WinForms test framework does not?: A test framework like FlaUI or WinAppDriver is a developer library: you write C# selectors, compile a runner, and maintain the suite as the app changes. Lapu AI is a desktop AI agent for the operator, not the engineer. You describe the task in plain English, the agent reads the UI Automation tree to find the controls, and every sensitive step — writing a file, running a command, sending data outside the machine — waits for your permission with a local audit trail. There is nothing to compile and no selector to maintain; the agent adapts to the UI it finds each run.

Sources

UI Automation Support for Standard Controls — .NET Framework — Microsoft Learn (2017-03-30) · accessed 2026-07-03
UI Automation Tree Overview — .NET Framework — Microsoft Learn (2017-03-30) · accessed 2026-07-03
FlaUI — UI automation library for .NET — FlaUI (2025-01-15) · accessed 2026-07-03
Introducing computer use, a new Claude 3.5 Sonnet, and Claude 3.5 Haiku — Anthropic (2024-10-22) · accessed 2026-07-03
